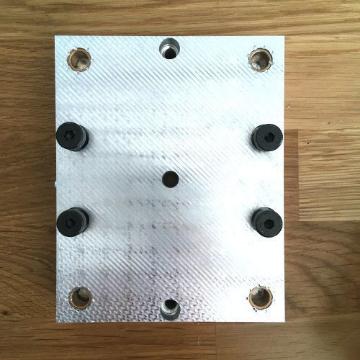

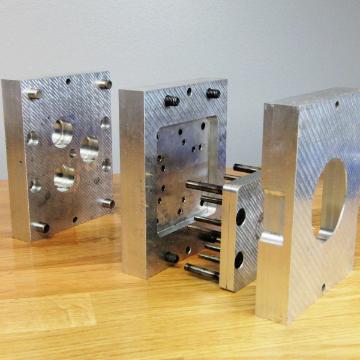

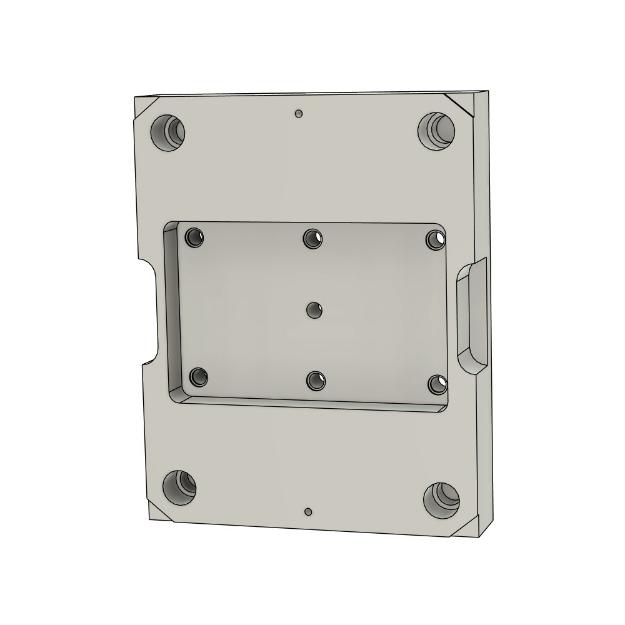

Standard size 6061 aluminum mold holder machined by the Spyder CNC for the APSX-PIM 3D Printed Insert Molds. This mold comes with the bushings and pins installed. You just need to print your 3D insert mold. It uses the claws on the both sides. The 3D printed molds can be made by using Origin, FormLabs, Markforged, Stratasys or an Asiga 3D printer with high temp and high conductive plastic material. NOTE: It is suggested to use ONLY PP, PE or TPE materials with this type of molds. Other materials may need either high injection pressure or high temperature for molding. Please read this 3D PRINTED MOLD USERGUIDE for more information. If you like to get some consulting on how to design 3D printed molds for different applications, you can always contact with our partner Lasse Staal at 3DPMOLDS.com . It comes with a rubber cushion and two screws (1/4-20 5/8 inch) on the B side (right side) and two screws (1/4-20 1/2 in) on the A side (left side). The Silicone Rubber sheet (1/8" thick) material can also be purchased from McMaster . 3D printed insert molds are NOT included. This video on our YouTube channel may help you to understand how to install the mold on the machine: There is another video about the 3D printed molds including installation and machine settings: There is no temperature sensor hole provided for the 3D mold inserts. The mold insulator should be used to stabilize the mold temperature over time. Dimensions: 4.8"W x 6.0"H x 2.0"D Pins, bushings and a set of claws are included. There will be only one set of claws for multiple mold order. The screws (1/4"-20 round head) High-temperature silicone rubber sheet APSX-PIM 3D Printed Insert Mold Holder (STEP) APSX-PIM 3D Printed Insert Mold Sample (STEP) Faster Design Iteration with 3D Printed Molds for APSX-PIM (PDF) PLEASE CLICK HERE TO SEE ALL MOLD DRAWINGS INCLUDING A SAMPLE MOLD WITH AN EJECTOR SYSTEM. . Suggested parameters to start for PP material injection: Barrel temp 200C Mold temp 30C or less than the room temperature to keep the fan ON all the time Injection pressure 80 bars Holding pressure 50 bars Clamp force 250 kg Cutoff amount: 30% higher than the total shot volume estimated First stage: 25% of the total shot volume estimated Valve 1st position: 180 Valve 2nd position: 200
