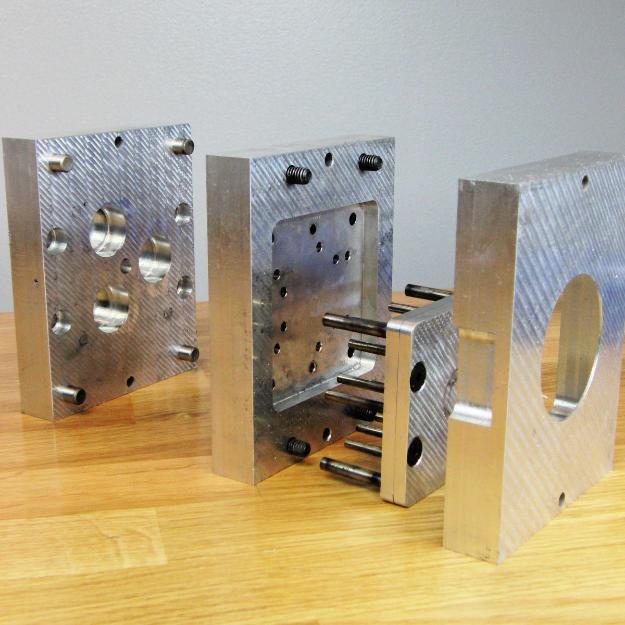

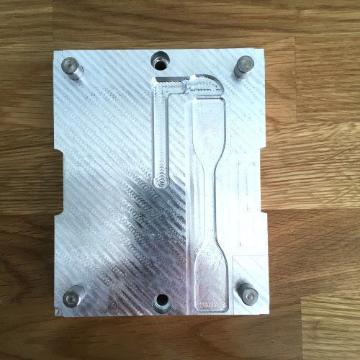

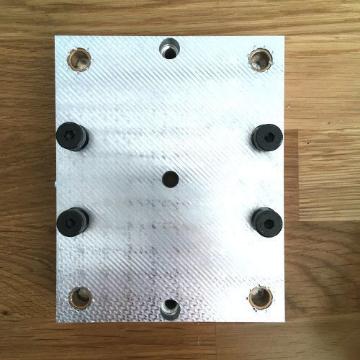

Consulting fee on your part drawing for a standard size 6061 aluminum or 3D printed mold made for you to make your part on the APSX-PIM. APSX • MOLD MAKING Mold Making for the APSX-PIM NOTE: This service is available depending on our work schedule. Sometimes we may not have available resources hence the lead time could be longer than usual (months vs weeks). Are you in need of a custom mold for your APSX-PIM injection machine? Our custom mold design service is tailored specifically for APSX-PIM customers like you. Whether you require molds with or without ejector pins, we've got you covered. Our experienced team specializes in crafting high-quality aluminum or 3D printed molds to meet your part specifications and production needs. The part can be a simple ASTM test specimen or a complex product design. Here's how it works: Submit Your Part Drawing: To kickstart the project, simply email us ( [email protected] ) with the STEP file for your part drawing. To initiate this process, a downpayment of $175 is required. This amount will be deducted from the final invoice at the project's conclusion. Design Inspection: Upon receiving your part drawing, we'll conduct a thorough design inspection to ensure that every detail is accounted for. We will give you a feedback about the part design and send you the final invoice for the mold. Custom Mold Design: Once the design inspection is complete and the payment for the final invoice is received, our team will begin crafting your custom mold. Finalization and Delivery: After the mold design is finalized and meets your approval, we'll proceed with manufacturing and testing. The lead time is typically 2-3 weeks. Final Pricing The cost of our custom mold design service typically ranges from $2500 to $5000, depending on the complexity of the part and mold features such as ejector system and number of cavities. Partner with us for custom mold designs tailored specifically for your APSX-PIM injection machine. Contact us today to get started on your project! Dimensions: 4.8"W x 6.0"H x (2.0"-3.5")D. Alignment pins, bushings and shoulder bolts are included. The thread size for the temperature sensor on the side of the mold is M3. PLEASE CLICK HERE TO SEE ALL MOLD DRAWINGS INCLUDING A SAMPLE MOLD WITH AN EJECTOR SYSTEM.
